Connectors
CorSeal Connectors
Rosenberger SLink™ CorSeal connectors are available in N and DIN 7/16 series with both male and female interfaces. All CorSeal connectors are designed for ease of attachment while providing consistent, industry leading performance. CorSeal connectors are
available for corrugated coaxial cables from 1/4" to 1-5/8"
All SLink CorSeal connectors have excellent mechanical and climatic properties that insure long-term durability and performance in outdoor installations. CorSeal connectors are designed to exceed the IP68 Ingress standard to withstand 2.5 bars (36 psi) of pressure
All SLink CorSeal connectors ate coated with specially selected flash white bronze over silver (OPTARGEN®) plating. This coating is specially selected to provide protection against oxidation while delivering exceptional Intermodulation performance and excellent electrical conductivity
| N Series | |
| Technical Characteristics | |
| Nominal impedance | 50 Ω |
| Frequency loss | DC to 11GHz |
| Intermodulation | 0.1 dB |
| @ 2 x 43 bDm | |
| RF Leakage | ≤-128 dB @ 1 HGz |
| Operation temperature | -45 C to +85 C |
| Waterproof /Protection | IP 68 |
| Planing Outer Contact | white bronze |
| Planing Center Contact | Silver |
| Return Loss | |
| 1/4", 3/8", 1/2", 7/8" 1-1/4" | ≤35dB DC to 1.0 GHz ≤30 dB 1.0 to 2.7Ghz |
| 1-5/8" | ≤35dB DC to 2.7GHz |
| 7/16 Series | |
| Technical Characteristics | |
| Nominal impedance | 50 Ω |
| Frequency loss | DC to 8.3GHz |
| Intermodulation | 0.05 dB |
| @ 2 x 43 bDm | |
| RF Leakage | ≤-128 dB @ 1GHz |
| Operation temperature | -45 C to +85 C |
| Waterproof /Protection | IP 68 |
| Planing Outer Contact | white bronze |
| Planing Center Contact | Silver |
| Return Loss | |
| 1/4", 3/8", 1/2", 7/8" | ≤35dB DC to 1.0 GHz ≤30 dB 1.0 to 2.7Ghz |
| 1-1/4", 1-5/8" | ≤30dB DC to 2.7GHz |
Connectors for LMR® 195
| Type | N Male Straight |
| Part Number | TC-195-NM |
| Pin Plating | Gold |
| Body Plating | Silver |
| Pin Attachment | Solder |
| Body Attachment | Crimp |
| Insulator Base Material | PTFE |
| Body Base Material | Brass |
| Crimp Tool | HX-4 |
| Crimp Die | Y197 |
| Type | TNC Male Straight |
| Part Number | TC-195-TM |
| Pin Plating | Gold |
| Body Plating | Silver |
| Pin Attachment | Solder |
| Body Attachment | Crimp |
| Insulation Base Material | PTFE |
| Body Base Material | Brass |
| Crimp Tool | HX-4 |
| Crimp Die | Y197 |

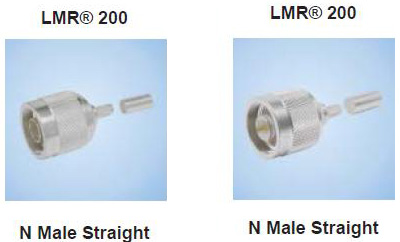

Connectors for LMR®200
| Type | N Male Straight |
| Part Number | TC-200-NM |
| Pin Plating | Gold |
| Body Plating | Silver |
| Pin Attachment | Solder |
| Body Attachment | Crimp |
| Insulator Base Material | PTFE |
| Body Base Material | Brass |
| Crimp Tool | HX-4 |
| Crimp Die | Y197 |
| Type | T Male Straight |
| Part Number | EZ-200-NM |
| Pin Plating | Gold |
| Body Plating | Silver |
| Pin Attachment | Solder |
| Body Attachment | Crimp |
| Insulation Base Material | PTFE |
| Body Base Material | Brass |
| Crimp Tool | HX-4 |
| Crimp Die | Y197 |
